Gate, Globe, Check, Ball & Butterfly Valves

These valves are fundamental components in fluid control systems, each serving a unique function to regulate, control, or isolate flow. Here’s a comprehensive overview:

---

1. Gate Valves

Gate valves are designed for on/off control, providing minimal flow resistance when fully open. They use a gate that moves perpendicular to the flow to block or allow passage.

Grades:

1. Carbon Steel:
   • A105, A216 WCB: Suitable for general service and high-pressure applications.
2. Stainless Steel:
   • 304, 316: For enhanced corrosion resistance and high-temperature environments.
3. Alloy Steel:
   • A182 F11, F22: For high-pressure and high-temperature applications.

Sizes:

• Diameter: Typically ranges from 2 inches to 48 inches

Applications:

1. Water Supply: Used for water distribution systems where minimal flow resistance is desired.
2. Oil and Gas: Suitable for pipelines requiring reliable shut-off.
3. Industrial: Employed in various industrial systems needing high-flow capacity.

---

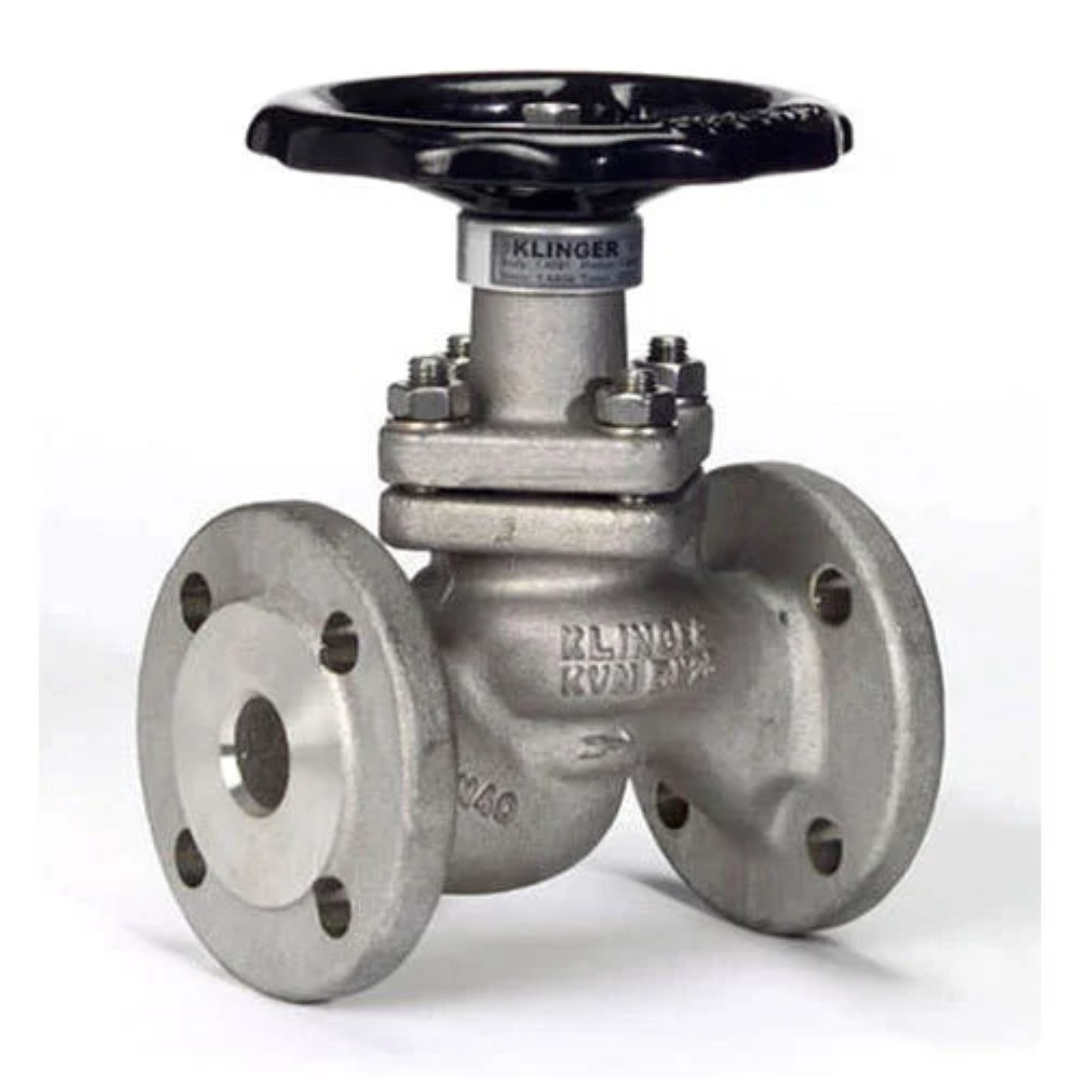

2. Globe Valves

Globe valves control flow by varying the size of the flow passage. They are ideal for precise throttling and flow regulation.

Grades:

1. Carbon Steel:
   • A105, A216 WCB: For general applications and moderate temperatures.
2. Stainless Steel:
   • 304, 316: For resistance to corrosion and high-temperature performance.
3. Bronze:
   • B62: For applications requiring good machinability and durability.

Sizes:

• Diameter: Typically ranges up to 24 inches

Applications:

1. Water Treatment: Provides precise flow control for water and wastewater systems.
2. Chemical Processing: Ideal for regulating chemical flows and maintaining accurate control.
3. Industrial Systems: Used in systems needing accurate flow adjustment and control.

---

3. Check Valves

Check valves prevent backflow by allowing fluid to flow in one direction only. They are crucial for protecting systems from reverse damage.

Grades:

1. Carbon Steel:
   • A105: For general service and high-pressure applications.
2. Stainless Steel:
   • 316: For corrosion resistance and high-temperature environments.
3. Brass:
   • C37700: For general-purpose applications and good machinability.

Sizes:

• Diameter: Typically ranges from 1 inch to 24 inches

Applications:

1. Water Supply: Prevents backflow in water distribution systems.
2. Oil and Gas: Protects pipelines and equipment from reverse flow.
3. Industrial: Ensures safe and reliable operation in various industrial processes.

---

4. Ball Valves

Ball valves use a spherical ball with a hole to control fluid flow. They offer quick operation and reliable shut-off with minimal pressure drop.

Grades:

1. Carbon Steel:
   • A105: For general use and high-pressure applications.
2. Stainless Steel:
   • 304, 316: For corrosion resistance and high-temperature performance.
3. Alloy Steel:
   • A182 F11: For high-pressure and high-temperature applications.

Sizes:

• Diameter: Typically ranges from 1/2 inch to 48 inches

Applications:

1. Oil and Gas: Ideal for quick shut-off in pipelines and systems.
2. Water Treatment: Provides reliable control in water and wastewater applications.
3. Industrial: Suitable for handling various fluids with high flow rates.

---

5. Butterfly Valves

Butterfly valves use a rotating disc to control the flow of fluid. They are compact and cost-effective for on/off and throttling applications.

Grades:

1. Carbon Steel:
   • A216 WCB: For general applications requiring strength and durability.
2. Stainless Steel:
   • 304, 316: For corrosion resistance and high temperatures.
3. Ductile Iron:
   • A536: Provides strength and durability for various applications.

Sizes:

• Diameter: Typically ranges from 2 inches to 48 inches

Applications:

1. Water Supply: Ideal for controlling flow in water distribution systems.
2. Wastewater Treatment: Used in managing flow in treatment facilities.
3. HVAC Systems: Suitable for regulating airflow in heating, ventilation, and air conditioning systems.
