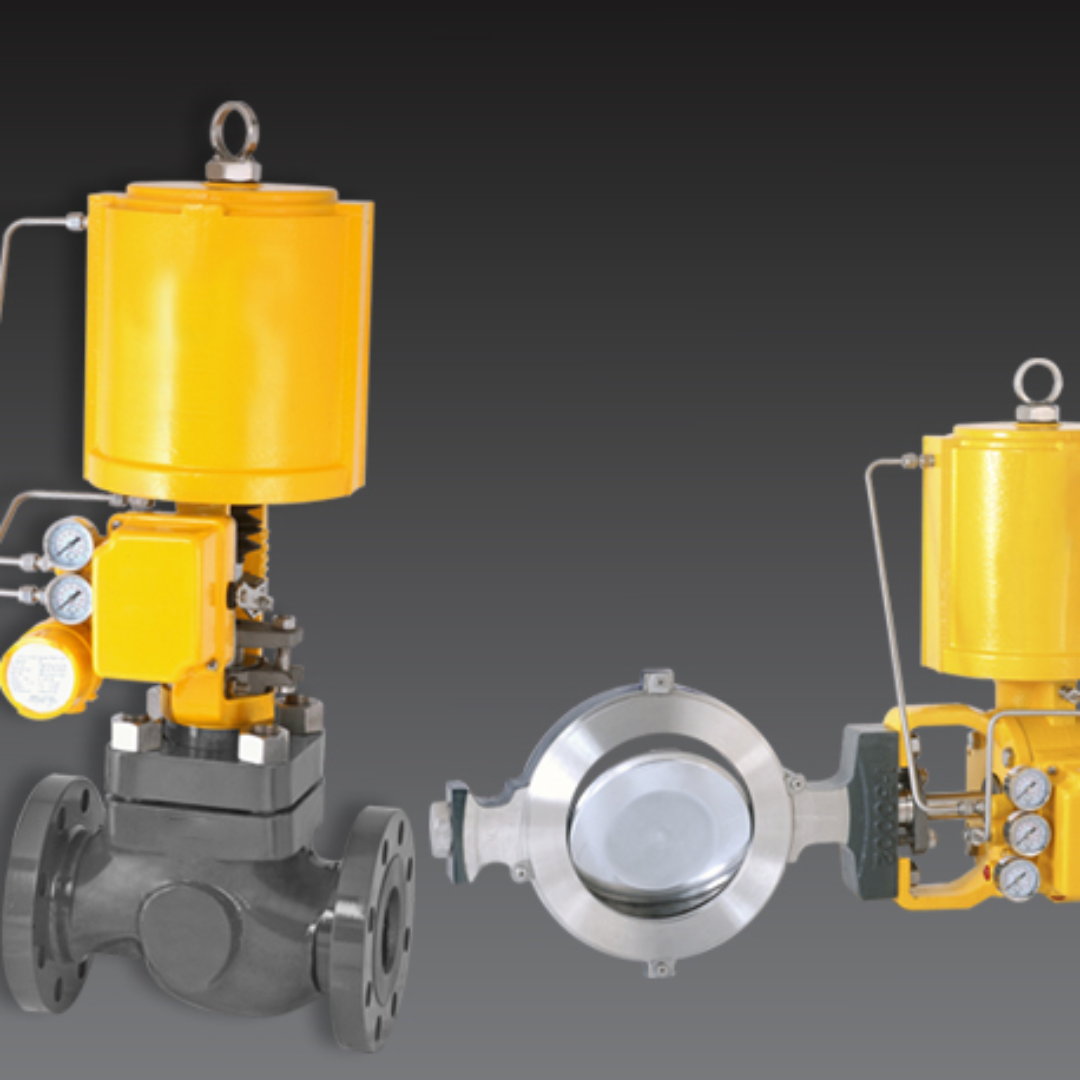

Globe Valves Butterfly Valves Segmented Ball Valves

These valves are designed to control the flow of fluids in various applications, each offering unique features and advantages.

---

1. Globe Valves

Globe valves regulate flow by varying the size of the flow passage. They are known for their ability to provide precise throttling and control.

Grades:

1. Carbon Steel:
   • A105, A216 WCB: Suitable for general service and moderate temperatures.
2. Stainless Steel:
   • 304, 316: Offers corrosion resistance and high-temperature performance.
3. Bronze:
   • B62: Provides good machinability and durability.

Sizes:

• Diameter: Typically ranges up to 24 inches

Applications:

1. Water Treatment: Ideal for precise flow control in water and wastewater systems.
2. Chemical Processing: Suitable for controlling chemical flows with accuracy.
3. Industrial Systems: Used in systems requiring precise flow adjustment and regulation.

---

2. Butterfly Valves

Butterfly valves use a rotating disc to control the flow of fluid. They are compact, cost-effective, and suitable for both on/off and throttling applications.

Grades:

1. Carbon Steel:
   • A216 WCB: Provides strength and durability for general applications.
2. Stainless Steel:
   • 304, 316: Offers corrosion resistance and performance in high-temperature environments.
3. Ductile Iron:
   • A536: Ensures strength and durability for various applications.

Sizes:

• Diameter: Typically ranges from 2 inches to 48 inches

Applications:

1. Water Supply: Controls flow in water distribution systems effectively.
2. Wastewater Treatment: Manages flow in treatment facilities with reliability.
3. HVAC Systems: Regulates airflow in heating, ventilation, and air conditioning systems.

---

3. Segmented Ball Valves

Segmented ball valves feature a ball with a segment removed, allowing for precise control of challenging fluids. They are effective in handling slurries, viscous fluids, and other demanding applications.

Grades:

1. Carbon Steel:
   • A105: Suitable for general use and high-pressure conditions.
2. Stainless Steel:
   • 316: Offers corrosion resistance and performance in high temperatures.
3. Alloy Steel:
   • A182 F11: For high-pressure and high-temperature environments.

Sizes:

• Diameter: Typically ranges up to 12 inches

Applications:

1. Chemical Processing: Handles slurries and viscous fluids with precision.
2. Mining: Suitable for abrasive materials and harsh conditions.
3. Water Treatment: Manages high flow rates and challenging conditions effectively.
